Product Highlight: OO Scale Class 30 and 31s
![Product Highlight: OO Scale Class 30 and 31s](https://i0.wp.com/news.bachmann.co.uk/wp-content/uploads/2024/02/News-Story-Thumbnail-Class-30-31-2024.jpg?resize=680%2C383&ssl=1)
The new OO Scale models Class 30 and Class 31 of the Bachmann Branchline range were first announced in our Spring 2024 British Railway Announcements after having been previewed in a special video production with Hornby Magazine. We’ve shown these models before in a previous Product Highlight, but with the first models docking in the UK at the end of July, now is a perfect time to take another look.
The specifications of the new Class 30 and 31 models can be seen in the above YouTube video.
These locomotives feature the high levels of detail and functionality that you would expect from a Bachmann Branchline model, and what we see here is the result of many years of painstaking research and development. The new tooling has allowed for a comprehensive range of models that depicts multiple variations of the class throughout their working lives.
The models feature several die cast components, including the chassis block, bogie towers and gearboxes, as well as the usual array of separately applied metal detail parts such as grab handles, windscreen wipers, etched grilles and sprung buffers.
The locomotives also all share the following features:
The tooling features for the new Class 30 and 31 models can be seen in the above YouTube video.
- Five pole, twin shaft motor with two flywheels providing drive to both bogies
- All axle drive with separate metal bearings fitted to each axle and electrical pickup from all outer wheels on each bogie
- Detachable coupling pockets to NEM362 standards fitted to each bogie
- Diecast metal chassis block, bogie towers and metal gearboxes, with gearing arranged for prototypical running speeds and haulage capabilities
- Directional lighting, including illuminated headcode panels and high intensity headlights where applicable, switchable on/off at either end on DCC or Analogue control
- Cab and engine room lighting when used on DCC
- Two quality speakers employed for optimum sound reproduction, fitted to every model as standard
- Each model supplied with a full set of decorated, model-specific bufferbeam pipework and accessory parts including three-piece, body-mounted snow ploughs and etched Nameplates and Plaques where applicable
SOUND FITTED models are equipped with the Bachmann Auto-Release Coupling System.
All models are also available as SOUND FITTED versions, which have a Zimo MS450P22 DCC Sound Decoder that has been programmed with an exclusive sound project, with either Class 30 or Class 31 sounds depending on the model, each of which contains over 25 sound and lighting functions.
For the ultimate experience, there are also SOUND FITTED DELUXE versions, which feature all of the above along with a motorised radiator fan, authentic tinted windscreen glazing and the new DCC controlled Auto-Release Coupling System, which can be seen in our YouTube Shorts video.
The SOUND FITTED and SOUND FITTED DELUXE models may also be used on most Analogue (DC) layouts, where they will play normal load running sounds and any other automatic or randomised sounds, along with fan sounds. The fan will also operate on SOUND FITTED DELUXE models when power is applied.
The Class 30 and 31 locomotives were built between 1957 and 1962. The locomotives were originally known as Brush Type 2s and over 260 were built. They were originally built with Mirrlees engines (Class 30) which were replaced a few years later with English Electric 12SVT engines (Class 31). The locomotives have seen several other modifications over the years, which have helped contribute to their long working lives.
The various liveries available can be seen in the above YouTube video.
Class 30 BR Green
Our first pair of models consists of Class 30s that carry BR’s green livery. Depicting locomotives in their original condition, these models feature Mirrlees exhaust ports whilst the Mirrlees engine is modelled inside the locomotive and these details can be seen through the bodyside windows. Many other details from the locomotives’ original configuration include the gangway doors, fan grilles, open boiler port, water filler hatch and battery boxes.
Running No. | Headcodes | Standard | SOUND FITTED | SOUND FITTED DELUXE |
---|---|---|---|---|
D5564 | 7J55 and 9K88 | 35-801 | 35-801SF | 35-801SFX |
D5617 | 1_52 and _G48 | 35-801A | 35-801ASF | 35-801ASFX |
Class 31/1 BR Blue
Our next pair of models are Class 31/1s in BR Blue. Like the rest of our Class 31s, these locomotives are fitted with English Electric engines, as evidenced by the exhaust ports on the roof and the engine block detail visible through the bodyside windows. They have also had the gangway doors, boiler port, water filler hatch and bodyside steps plated over whilst the headcode has been replaced with dominoes.
Running No. | Standard | SOUND FITTED | SOUND FITTED DELUXE |
---|---|---|---|
31123 | 35-805 | 35-805SF | 35-805SFX |
31293 | 35-805A | 35-805ASF | 35-805ASFX |

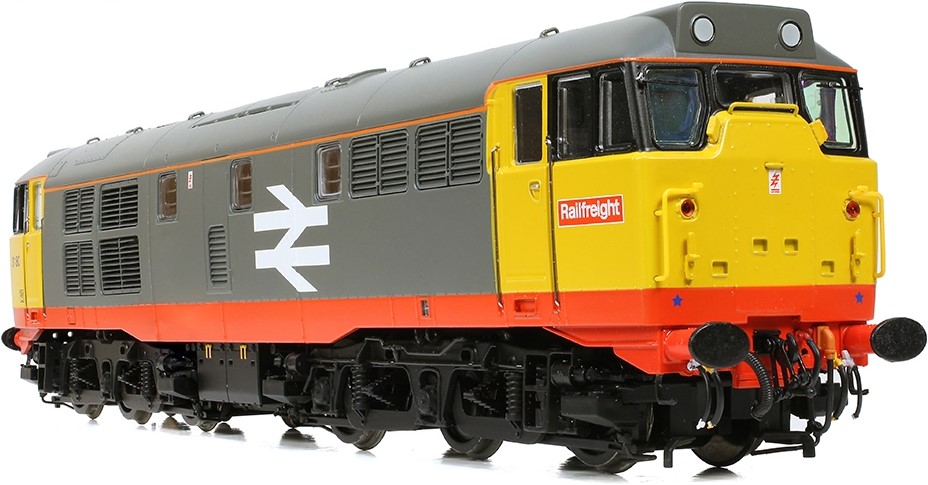

Class 31/1 Refurbished BR Railfreight (Red Stripe)
The third pair of models are refurbished Class 31/1s, decorated in the Red Stripe livery of BR Railfreight. These locomotives have had their body refurbished, with the buffer beam cowling having been removed and the headcode panel plated over and fitted with marker lights.
Running No. | Standard | SOUND FITTED | SOUND FITTED DELUXE |
---|---|---|---|
31180 | 35-821 | 35-821SF | 35-821SFX |
31149 | 35-821A | 35-821ASF | 35-821ASFX |
Class 31/1 Refurbished BR Railfreight Petroleum Sector
The next pair of models are also refurbished Class 31/1s, this time in the livery of BR Railfreight’s Petroleum Sector. The fan grilles on these models have been modified, with the roof featuring ‘top hats’ around the grilles and National Radio Network (NRN) pods. The cab ends are now equipped with high intensity headlights.
Running No. | Standard | SOUND FITTED | SOUND FITTED DELUXE |
---|---|---|---|
31319 | 35-823 | 35-823SF | 35-823SFX |
31304 | 35-823A | 35-823ASF | 35-823ASFX |
Class 31/4 Refurbished BR Blue
Our penultimate model is a refurbished Class 31/4 in BR Blue. This model has the original main fan grilles and is not fitted with the ‘top hat’ roof fan grilles, high intensity headlights or NRN pods, but has been furnished with Electric Train Heating (ETH) equipment.
Class 31/4 Refurbished Mainline Freight
Our final model is another refurbished Class 31/4, in the livery of Mainline Freight. This locomotive once again has the NRN radio pods, roof fan grille with ‘Top Hat’, ETH equipment and high intensity headlights, but still features the original main fan grilles with horizontal fins.
The first of locomotives will be arriving with Bachmann stockists at the start of August, so head to the Bachmann Europe website where you can find more information about the full range. Once you’ve selected your models, get in touch with your nearest retailer to order yours!
![Retailer Page Screenshot](https://i0.wp.com/news.bachmann.co.uk/wp-content/uploads/2023/12/Retailers-20231207.png?resize=680%2C517&ssl=1)
Your nearest retailer can be found by using the Retailers page on our website, which can be accessed either from the menu at the top of the page or by clicking on the button below.
